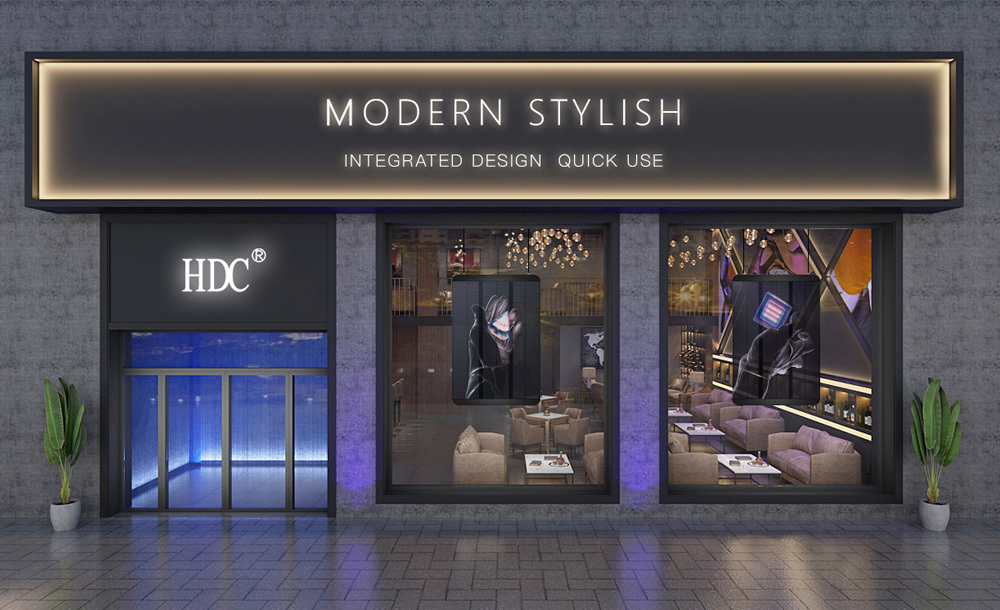

Drainage weapon 0816“, lit-known as a shop-enjoy a colorful vision, unique transparency properties, even if it is not lit, it will not affect the beauty.In the store, screens in different locations play different content, combining movement and movement to create a more personalized and atmospheric colorful experience.
Technology and beauty blend, immersive visual feast, let you immersive

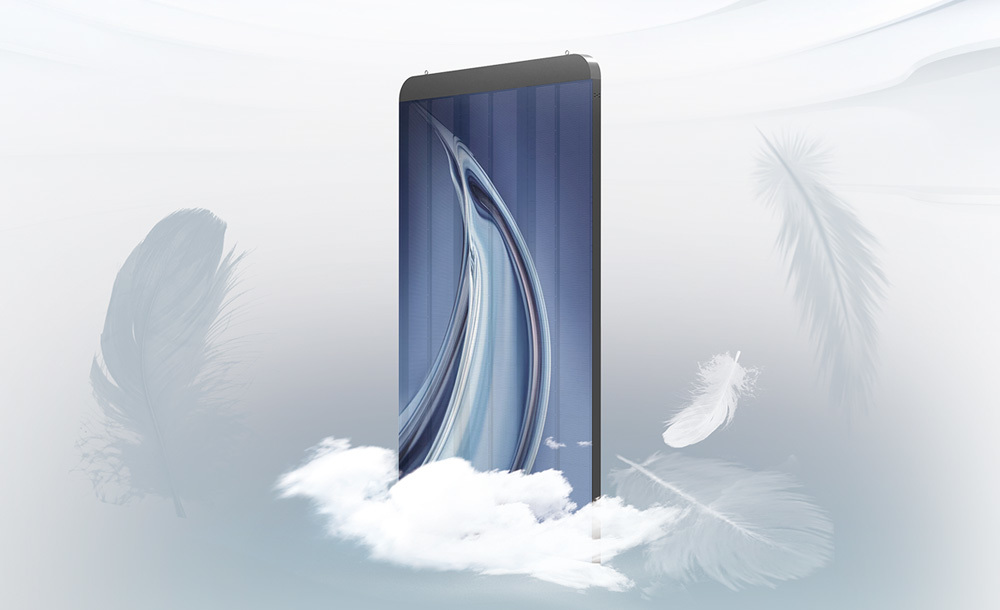

Compared with the traditional screen weight reduction of more than 20% screen body is only 28KG the overall thickness of the product is only 55mm

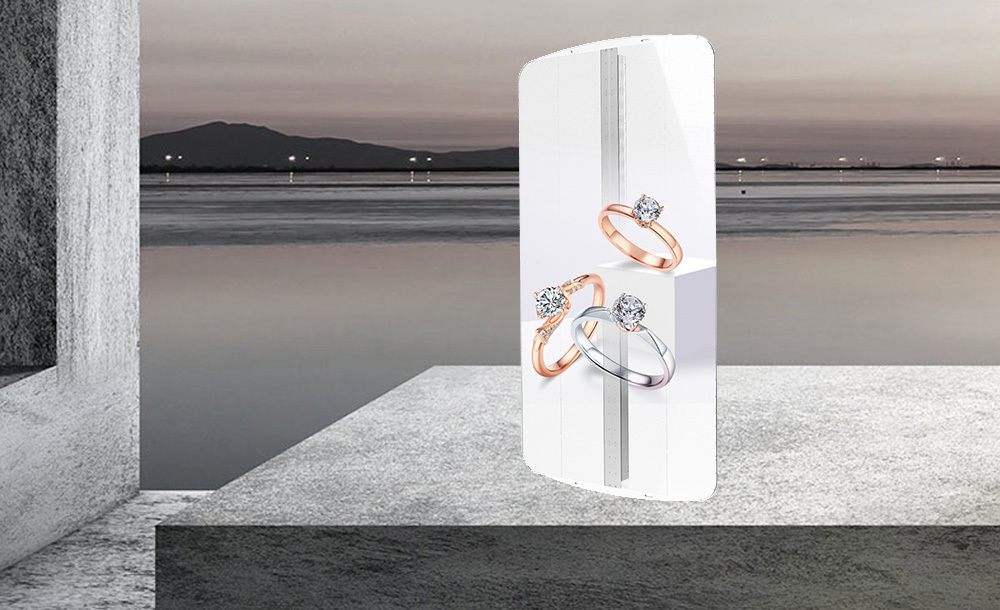

Integrated design allows the screen to break through the boundary and bind higher permeability, bringing more immersive visual experience.
Everything is under control

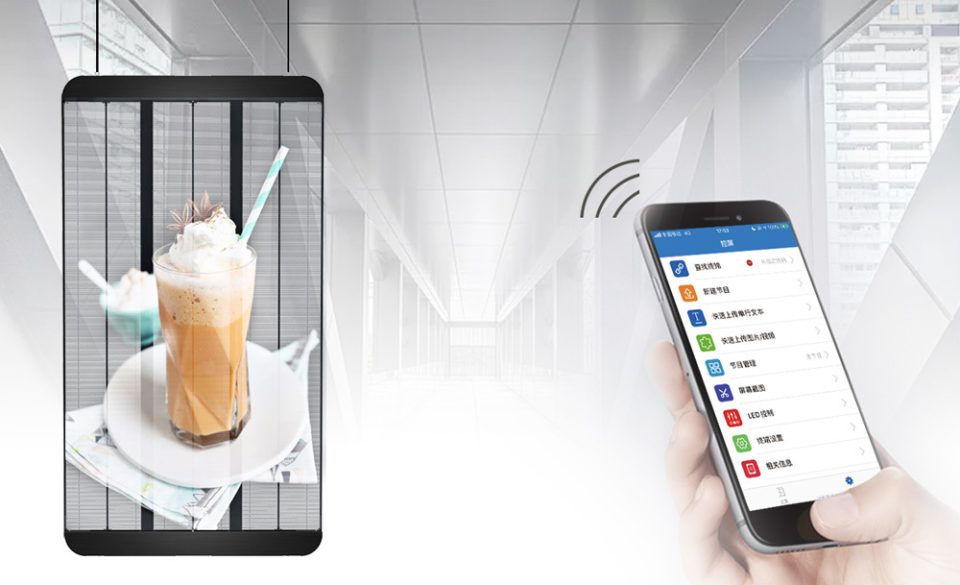

Intelligent wireless control, free operation
| Model | 0816 series | 0816 PRO series | 0816 S series | |
| Module composition | LED Lamp tube | SMD1921 | SMD1921 | SMD1921 |
| Pixel pitch（mm） | Horizontal 3mm vertical 6mm | Horizontal 2.77mm vertical 6mm | Horizontal 3.84mm vertical 6.25mm | |
| Module resolution（W*H) | 133*25 | 144*25 | 104*24 | |
| Module size(mm)（W*H*D） | 400*150*5 | 400*150*5 | 400*150*5 | |
| Box composition | Box unit board composition | 2*10 | 2*10 | 2*10 |
| Cabinet resolution（W*H） | 266*250 | 288*250 | 208*240 | |
| Box size(mm) (W*H) | 800*1500*50 | 800*1500*50 | 800*1500*50 | |
| Cabinet area(㎡) | 1.2 | 1.2 | 1.2 | |
| Box weight（Kg/a） | 16±0.5 | 16±0.5 | 16±0.5 | |
| Pixel density(Dots/㎡) | 55278 | 60000 | 41600 | |
| Photoelectric parameters | *White balance brightness cd/㎡ | ≥3000 | ≥3000 | ≥3000 |
| Horizontal viewing angle | 140±10° | 140±10° | 140±10° | |
| Vertical viewing angle | 140±10° | 140±10° | 140±10° | |
| Permeability | ≥55% | ≥55% | ≥55% | |
| Brightness uniformity | ≥99% | ≥99% | ≥99% | |
| Peak power consumption（W/㎡） | 680 | 680 | 680 | |
| Average power consumption（W/㎡） | 320 | 320 | 248 | |
| Processing performance | Power supply requirements | AC200-240V (47-63HZ) | AC200-240V (47-63HZ) | AC200-240V (47-63HZ) |
| Refresh rate(HZ) | 1920 | ≥3600 | 1920 | |
| Frame change frequency(HZ) | 60 | 60 | 60 | |
| Usage parameters | Drive mode | Constant current drive | Constant current drive | Constant current drive |
| Typical life value（hrs） | 100000 | 100000 | 100000 | |
| Operating temperature range（℃） | -10～+40 | -10～+40 | -10～+40 | |
| Storage temperature range（℃） | -20～+60 | -20～+60 | -20～+60 | |
| Operating humidity range（RH） | 10%-65% No condensation | 10%-65% No condensation | 10%-65% No condensation | |
| Storage humidity range（RH） | 10%-65% No condensation | 10%-65% No condensation | 10%-65% No condensation | |
