The X Series stage rental screen is designed for performances, events, and large conferences. Featuring high brightness, high refresh rate, HD image quality, and quick assembly, it easily meets various stage and temporary display needs with flexibility, durability, and brilliant visual impact.

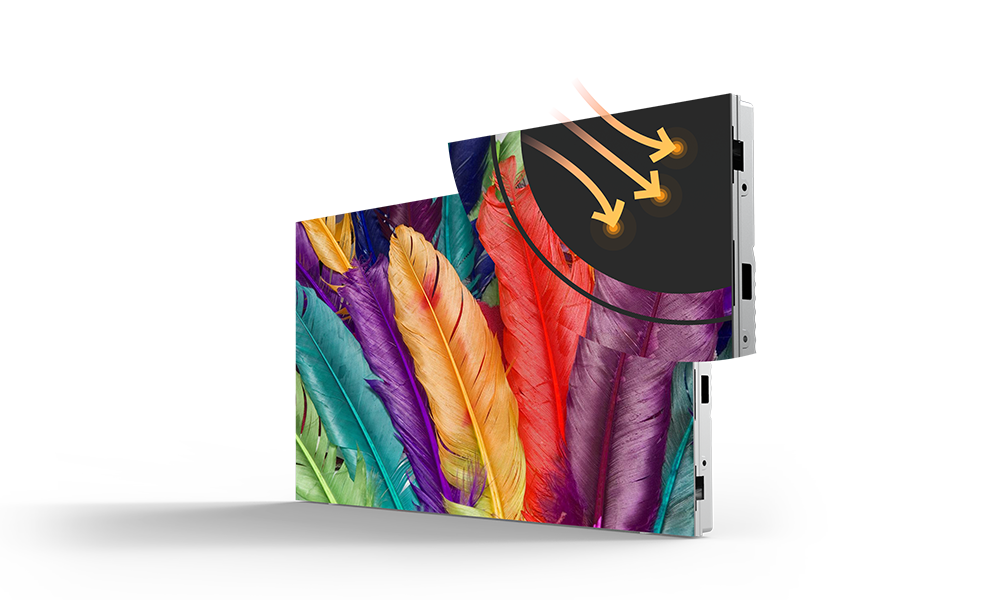

COB (Chip-on-Board) technology integrates LED chips directly onto the PCB, creating a seamless, highly durable display surface. Compared with traditional SMD technology, COB delivers superior contrast, enhanced protection, and a more immersive viewing experience—making it the preferred choice for premium indoor fine-pitch applications.
Advanced Flip-Chip COB technology reduces the single-pixel failure rate to just 5 PPM, offering up to 60× greater reliability than traditional SMD and 6× lower failure rates than conventional COB, ensuring long-lasting, stable display performance.
Featuring a matte black surface with advanced black encapsulation technology, the display minimizes reflections and enhances contrast for deeper blacks and richer colors. The optimized optical design effectively suppresses moiré patterns, ensuring crystal-clear visuals for both direct viewing and professional camera applications.
The native 16:9 cabinet design makes it easy to create standard Full HD, 4K, and 8K display walls. With true 1:1 pixel mapping, every LED pixel accurately reproduces the original video signal, delivering uncompromised image quality, sharper details, and a perfectly synchronized viewing experience.
With a 20,000:1 contrast ratio, 18-bit grayscale, and 0–1,000 nits white balance brightness, the display reproduces deeper blacks, brighter highlights, and smoother tonal transitions. Every scene is rendered with exceptional depth, accurate color, and outstanding visual realism.
Enjoy a consistently exceptional viewing experience with a 160° horizontal and vertical viewing angle. The display maintains accurate colors, uniform brightness, and outstanding image clarity from virtually any position, ensuring every viewer sees vivid, lifelike visuals without color shift or distortion.
Equipped with high-efficiency LED chips and the latest-generation QSE power supply, the display reduces energy consumption by up to 30% while lowering operating temperatures by 50%. This advanced design enhances system reliability, extends product lifespan, and significantly reduces long-term operating costs.
| Product model | P0.78 | P0.93 | P1.25 | P1.56 | P1.87 |
| Pixel pitch（mm） | 0.78 | 0.93 | 1.25 | 1.56 | 1.87 |
| LED type（W*H） | 4*3 | ||||
| Module size（W*H*D）mm | 150mm*168.75 | ||||
| Module resolution（W*H） | 192*216 | 160*180 | 120*135 | 96*108 | 80*90 |
| Box size（W*H*D）mm | 600*337.5 | ||||
| Cabinet resolution（W*H） | 768*432 | 640*360 | 480*270 | 384*216 | 320*180 |
| Scanning method | 1/60 | ||||
| Grayscale | 14Bit+Control Software 2Bit=16Bit | ||||
| Protection level | IP54 | ||||
| Brightness | ≥800cd/m² | ≥600cd/m² | ≥800cd/m² | ||
| Contrast | 10000：1 | 20000：1 | 10000：1 | ||
| Refresh frame frequency | 50/60Hz | ||||
| Maximum refresh rate | ≥3840Hz | 1920~3840Hz | 3840Hz | 1920~3840Hz | 3840Hz |
| Average module power consumption | ＜7W | ||||
| Horizontal/vertical view angle | ≥160° | ||||
| Working life | ≥100,000hours | ||||
| Installation and use method | Front and rear installation/front-end service | ||||
Whether you need a product quote, technical specification, or project consultation, our team is ready to assist.
