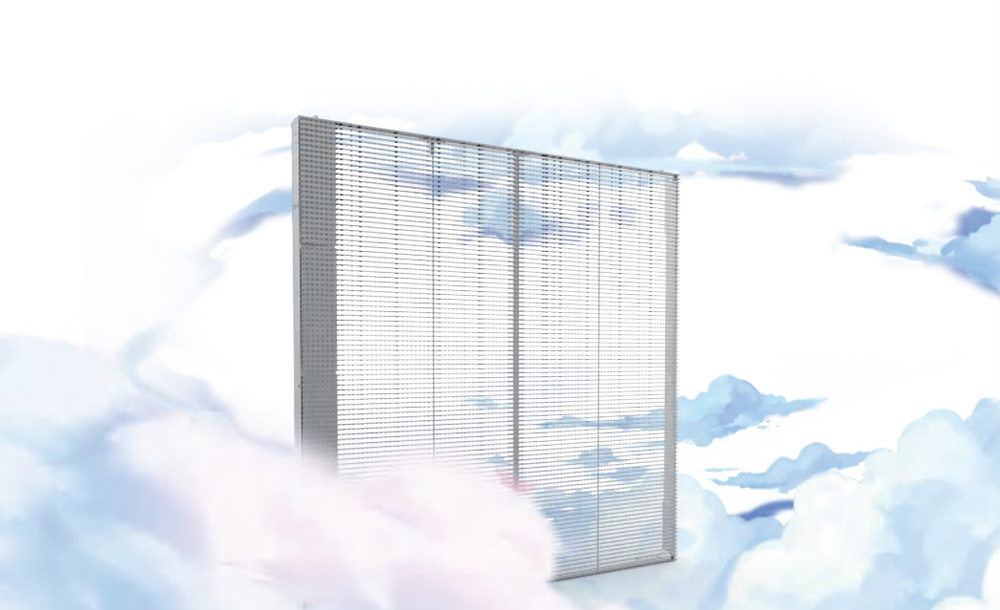

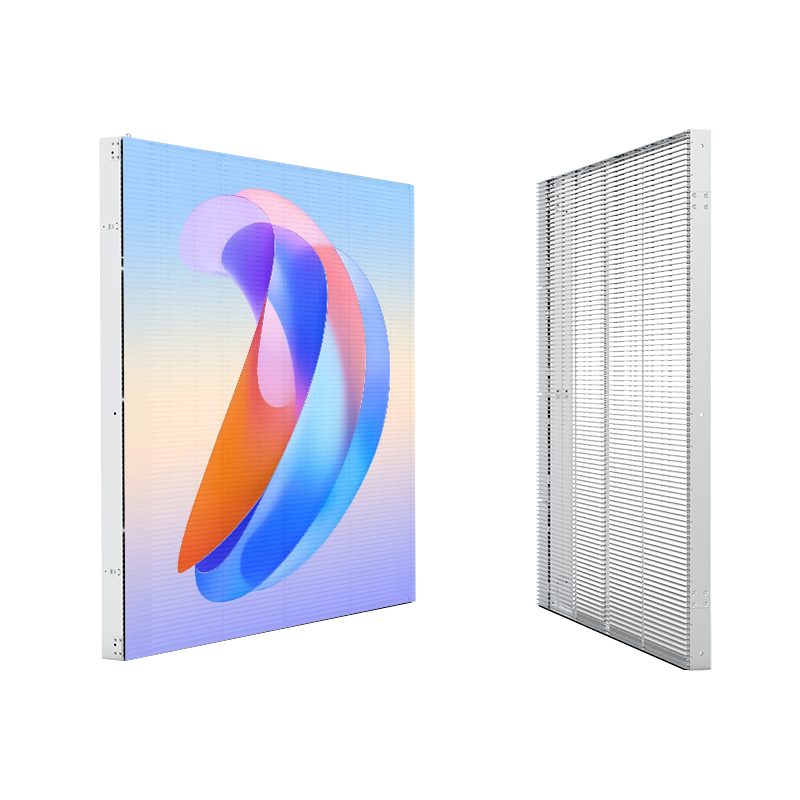

Transparent and flawless, invisible. It adopts hollow strip design. Compared with the traditional LED display cabinet, its structure is more flexible. The cabinet size can be customized according to the specific size of the glass to better fit the glass curtain wall. The weight per square meter is only 10KG, which is one-fifth of the weight of the normal outdoor LED display cabinet. It is very popular among the lighting engineering customers.
Compared with the traditional screen weight reduction of more than 75% per square is only 10KG, the overall thickness of the product is only 40mm
High refresh rate: 3840Hz
High light: ≥5000cd/m²

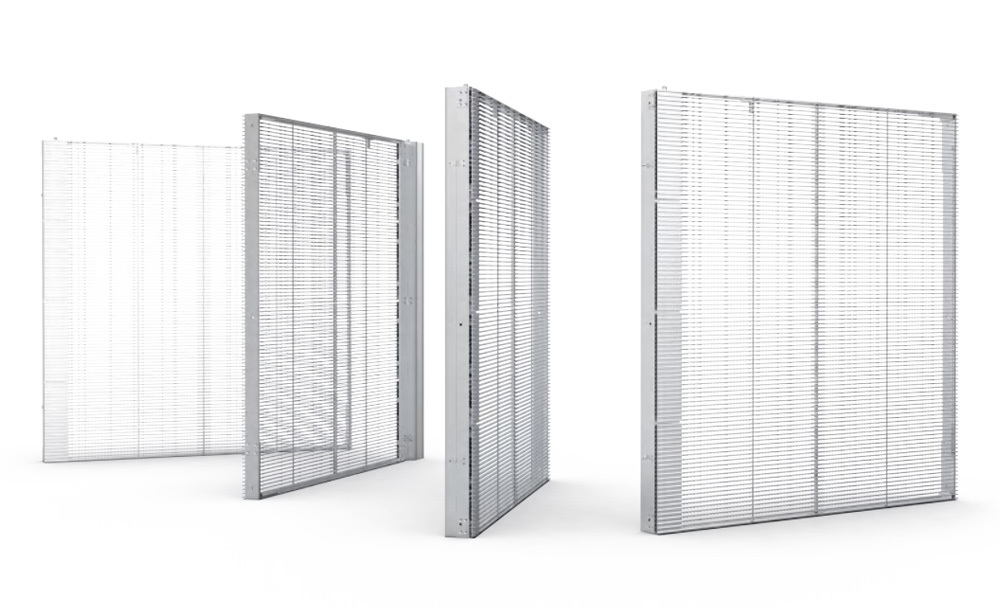

Innovative cutting angle design, all aspects of the angle is designed just for you.

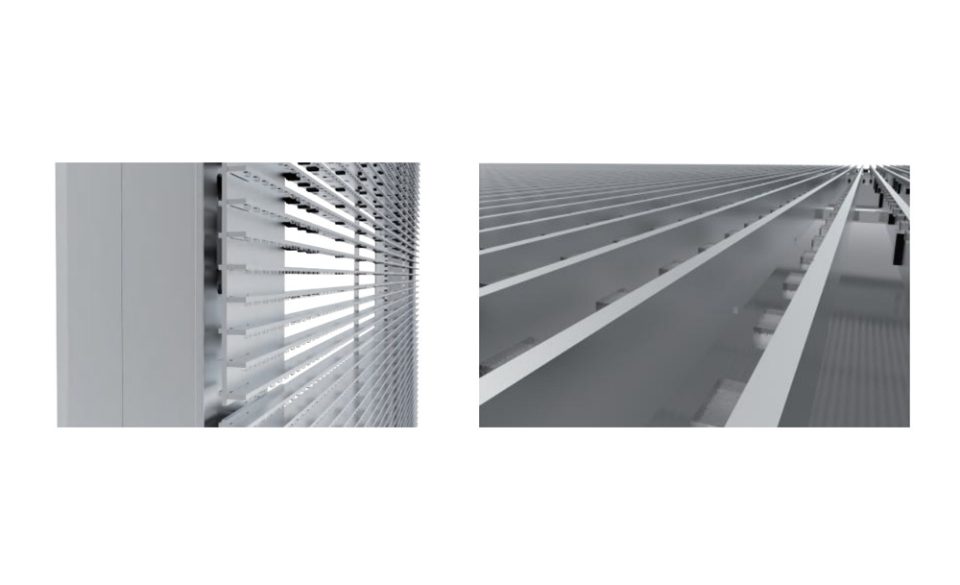

Side-emitting: With side pins, UV protection, it has higher transparency and reliability.
| Product model | MQ 3.9-7.8 | MQ10.4-10.4 | MQ10-10 | MQ 15-15 | MQ 15-20 |
| LED Lamp tube | SMD3510 | SMD3510 | SMD3510 | SMD3510 | SMD3510 |
| Pixel pitch (mm) | Horizontal 3.9mm Vertical 7.8mm | Horizontal 10.416mm Vertical 10.4161mm | Horizontal 10mm Vertical 10mm | Horizontal 15.625mm Vertical 15.625mm | Horizontal 15.625mm Vertical 20mm |
| Die strip resolution (point) | 256*1 | 96*96 | 100*1 | 64*1 | 64*1 |
| Die strip length (mm) | 1000 | 1000 | 100 | 1000 | 1000 |
| Cabinet resolution（W*H） | 256*128 | 100*100 | 64*64 | 64*50 | |
| Box size (mm)（W*H） | 1000*1000*89.1 | 1000*1000*90 | 1000*1000*83 | 1000*1000*83 | 1000*1000*83 |
| Cabinet area（m2） | 1 | 1 | 1 | 1 | 1 |
| Box weight（Kg/a） | 13±0.5 | 13±0.5 | 13±0.5 | 10±0.5 | 12±0.5 |
| Pixel density (Dots/m2) | 32768 | 9216 | 10000 | 4096 | 3200 |
| White balance brightness (cd/m2) | ≥5000 | ≥5000 | ≥5000 | ≥5000 | ≥5000 |
| Horizontal viewing angle | 140±10° | 140±10° | 140±10° | 140±10° | 140±10° |
| Vertical viewing angle | Look up 70±10°，Looking down 50±10° | Look up 70±10°，Looking down 50±10° | 140±10° | Look up 70±10°，Looking down 50±10° | 140±10° |
| Permeability | ≥65% | ≥72% | ≥72% | ≥75% | ≥75% |
| Brightness uniformity | ≥99% | ≥97% | ≥97% | ≥99% | ≥99% |
| Peak power consumption（W/㎡） | 680 | 680 | 680 | 680 | 680 |
| Average power consumption（W/㎡） | 320 | 320 | 320 | 300 | 300 |
| Power supply requirements | AC200-240V (47-63HZ) | AC200-240V (47-63HZ) | AC200-240V (47-63HZ) | AC200-240V (47-63HZ) | AC200-240V (47-63HZ) |
| Refresh rate (HZ) | ≥1920/3840 | ≥3840 | ≥1920/3840 | ≥3840 | ≥1920/3840 |
| Frame change frequency (HZ) | 60 | 60 | 60 | 60 | 60 |
| Grayscale | 14 bit | 15 bit | 15 bit | 14 bit | 14 bit |
| Drive mode | Constant current drive 1/8 sweep | Constant current drive 1/2 sweep | Constant current drive 1/2 sweep | Constant current drive 1 sweep | Constant current drive 1/2 sweep |
| Typical life value（hrs） | 100000 | 100000 | 100000 | 100000 | 100000 |
| Operating humidity range（RH） | 10%-65% No condensation | 10%-65% No condensation | 10%-65% No condensation | 10%-65% No condensation | 10%-65% No condensation |
| Storage humidity range（RH） | 10%-65% No condensation | 10%-65% No condensation | 10%-65% No condensation | 10%-65% No condensation | 10%-65% No condensation |
