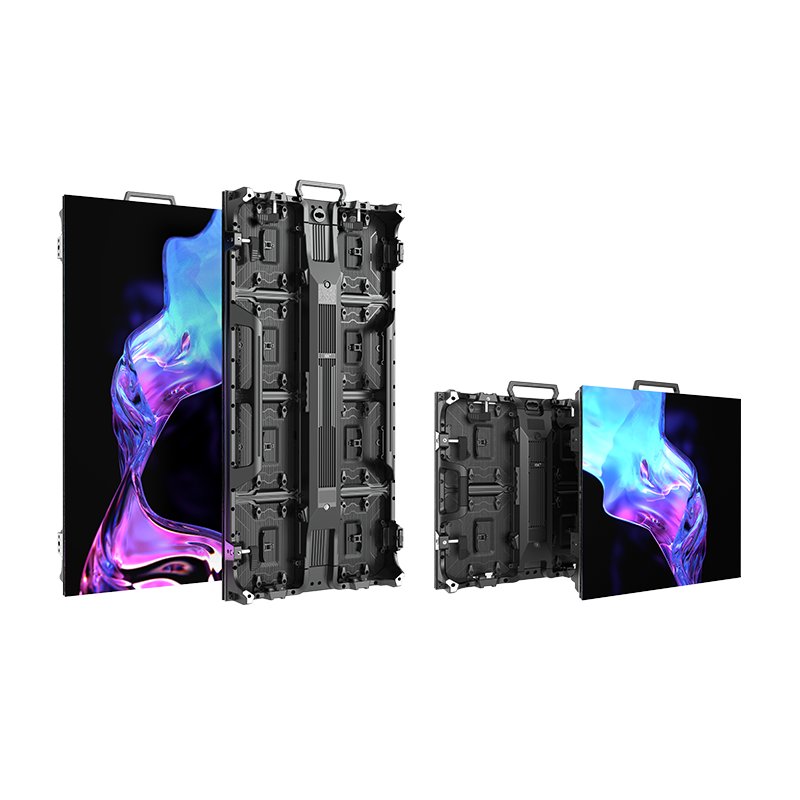

The X Series stage rental screen is designed for performances, events, and large conferences. Featuring high brightness, high refresh rate, HD image quality, and quick assembly, it easily meets various stage and temporary display needs with flexibility, durability, and brilliant visual impact.
Business Center, Stage and Scenery, Advertising and Media,
• Lightweight and ultra-thin cabinet

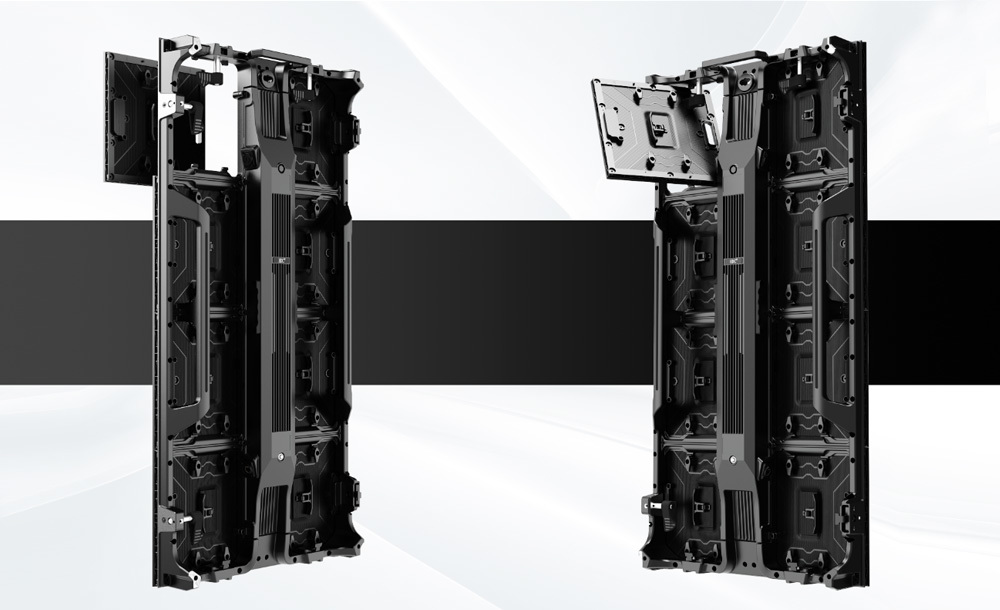

• Fast installation and maintenance
• Classic industrial design
• Various shapes and styles
It has high definition quality, which can show clearer and sharper images.
The color reproduction of the screen is unusually high, which can truly reproduce the colors of the shooting scene , making the picture more natural and realistic.

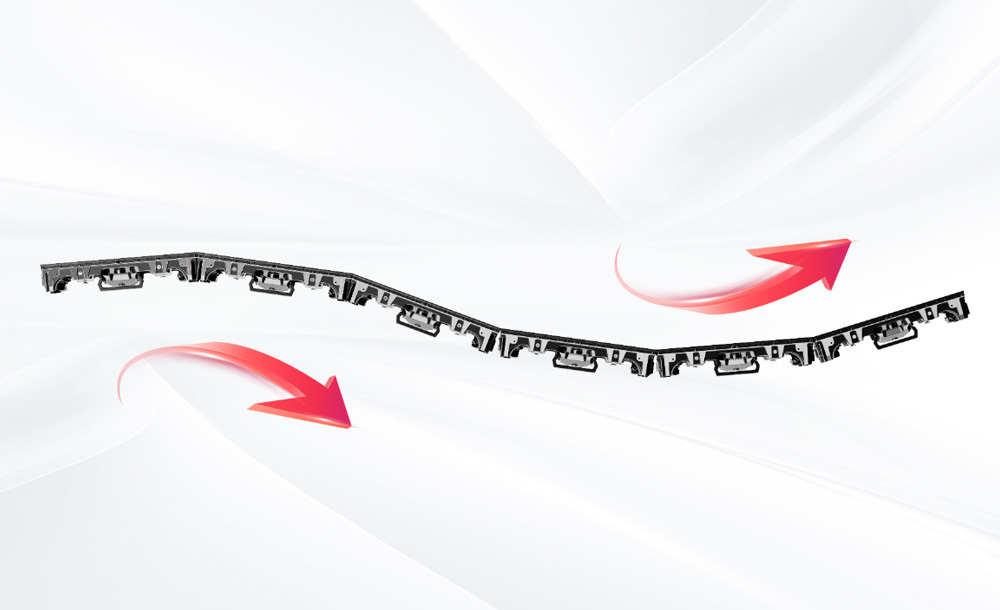

Can assemble inner and outer arcs,
12 kinds of arc designs
（0 、±2.5 、±5 、±7.5、±10、±12.5、+15）
12 kinds of arcdesigns

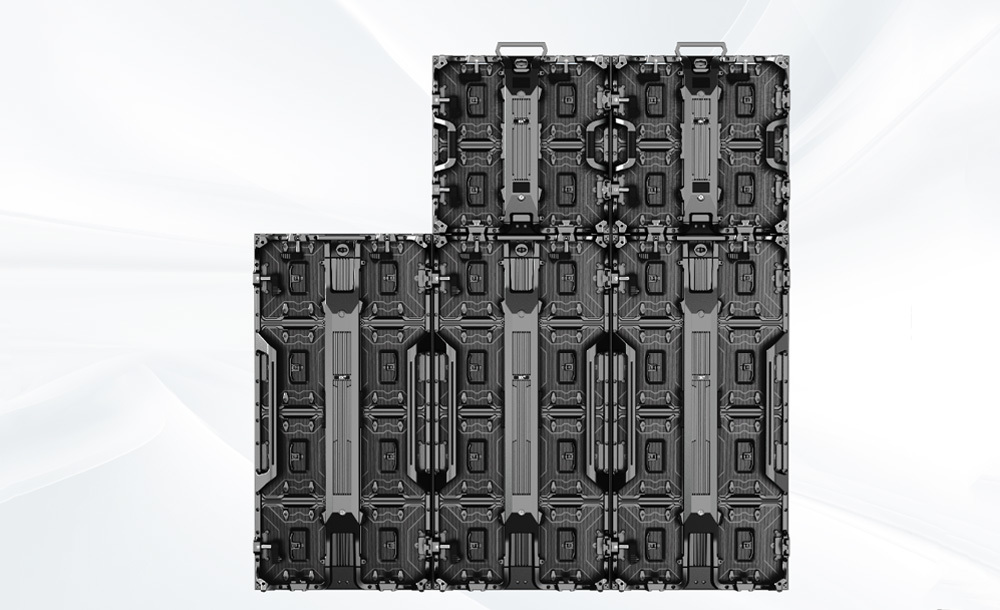

Both large and small boxes are supported Support mutual assembly.
| Model | ZP2.6XND10T | ZP2.9XND10T | ZP3.9XND10T | ZP2.6XWD40T | ZP2.9XWD40T | ZP3.9XWD45T |
| Usage Scenario | Indoor | Outdoor | ||||
| LED Lamp | SMD1515 | SMD2121 | SMD1415 | SMD1921 | ||
| Pixel Pitch (mm) | H：2.6mm V：2.6mm | H：2.97mm V：2.97mm | H：3.9mm V：3.9mm | H：2.6mm V：2.6mm | H：2.9mm V：2.9mm | H：3.9mm V：3.9mm |
| Module size (mm)（W*H*D） | 250*250 | |||||
| Box unit board composition | 2*2；2*4 | |||||
| Cabinet resolution（W*H） | 192*192；192*384 | 168*168；168*336 | 128*128；128*256 | 192*192；192*384 | 168*168；168*336 | 128*128；128*256 |

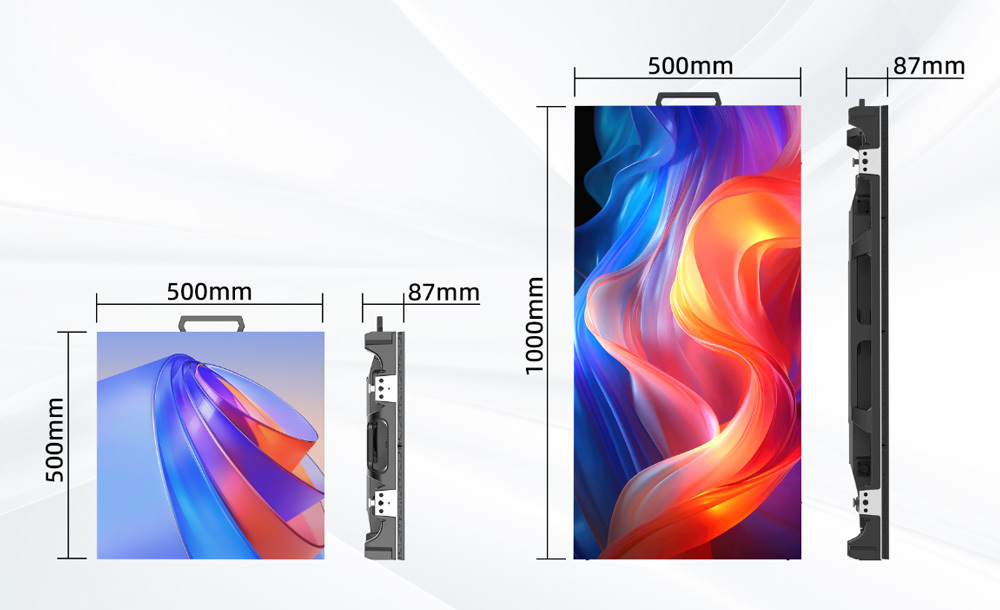

| Box size (mm)（W*H） | 500*500*87mm；500*1000*87mm | 500*500*88mm；500*1000*88mm | ||||
| Cabinet area（m2） | 0.25；0.5 | |||||
| Box weight（Kg/个） | 7.5±0.5；13.5±0.5 | 8±0.5；12.5±0.5 | 8.5±0.5；13.5±0.5 | |||
| Pixel density (Dots/m2) | 147456 | 112896 | 65536 | 147456 | 112896 | 65536 |
| White balance brightness (cd/m2) | 600-1000 | 3500-4000 | 4000-5000 | |||
| Horizontal viewing angle | 140±10° | |||||
| Vertical viewing angle | 140±10° | |||||
| Peak power consumption（W/㎡） | 680 | 600 | 700 | |||
| Average power consumption（W/㎡） | 270 | 240 | 280 | |||
| Power supply requirements | AC200-240V (47-63HZ) | |||||
| Grayscale | 13bit | 14bit | ||||
| Refresh rate (HZ) | ≥3840 | |||||
| Frame change frequency (HZ) | 60 | |||||
| Waterproof grade | IP30 | IP65 | ||||
| Drive mode | Constant current drive 1/32 sweep | Constant current drive 1/28 sweep | Constant current drive 1/16 sweep | Constant current drive 1/24sweep | Constant current drive 1/21 sweep | Constant current drive 1/16 sweep |
| Typical life value（hrs） | 100000 | |||||
| Operating temperature range（℃） | -10～+40 | |||||
| Storage temperature range（℃） | -20～+60 | |||||
| Operating humidity range（RH） | 10%-65% Non-condensing beads | 10%-80% Non-condensing beads | ||||
| Storage humidity range（RH） | 10%-65% Non-condensing beads | 10%-90% Non-condensing beads | ||||
