Shanghai Hongguang Display Technology Co. Ltd.
All-in-one LED Poster Display
- Description
- Specification parameters
-

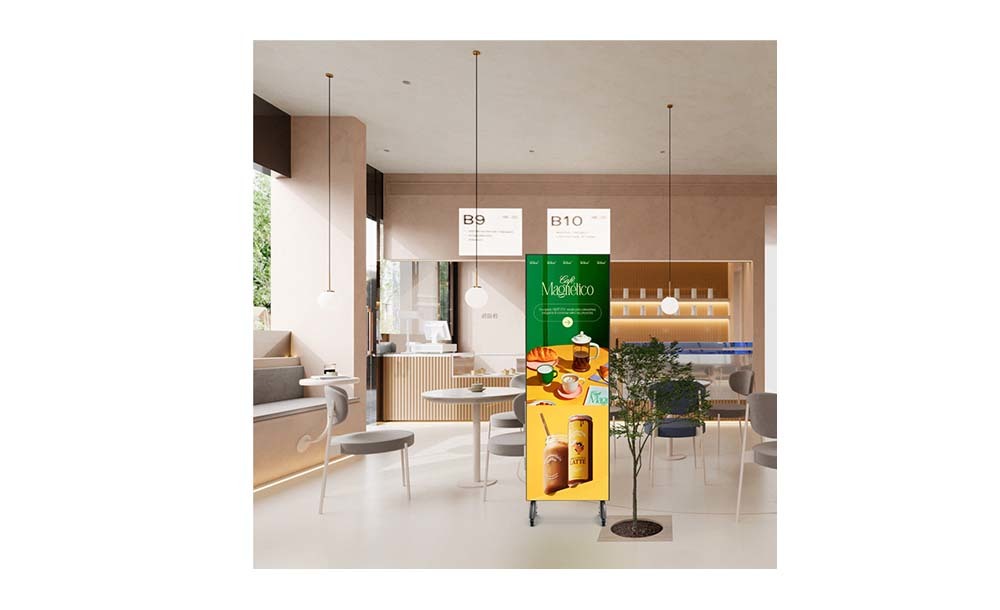

Application Scenarios
1. Commercial Retail
2. Food & Beverage Chains
3. Public Services
4. Transportation Hubs
5. Exhibitions & Launches
6. Hotels & Offices

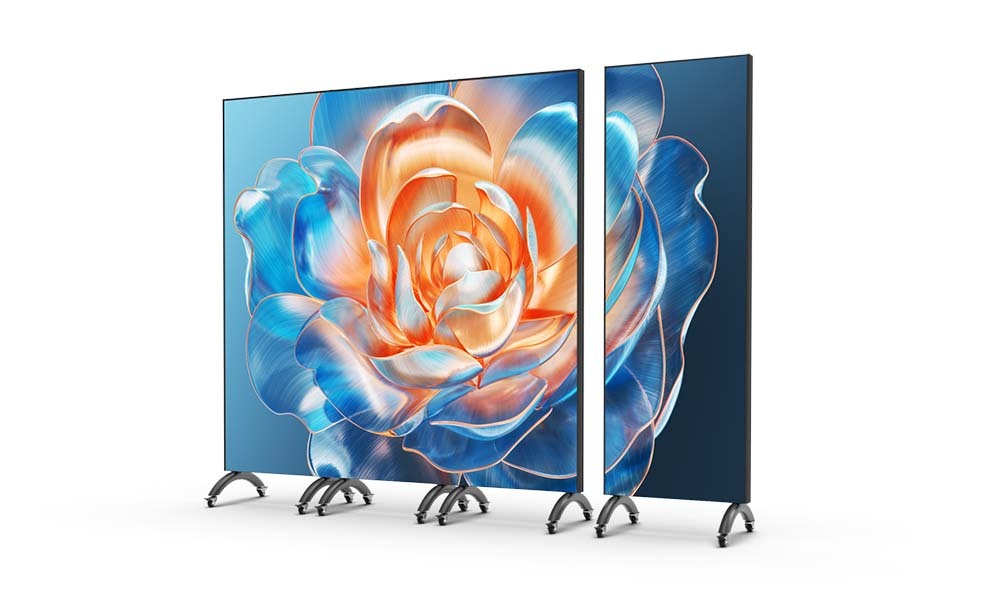

Multi-screen connectivity
In commercial spaces, product launches, and pop-up brand stores, multiple LED poster displays can be seamlessly spliced and synchronized to create dynamic digital advertising walls. By playing unified branded videos, they captivate audiences, boost engagement, and elevate brand visibility.

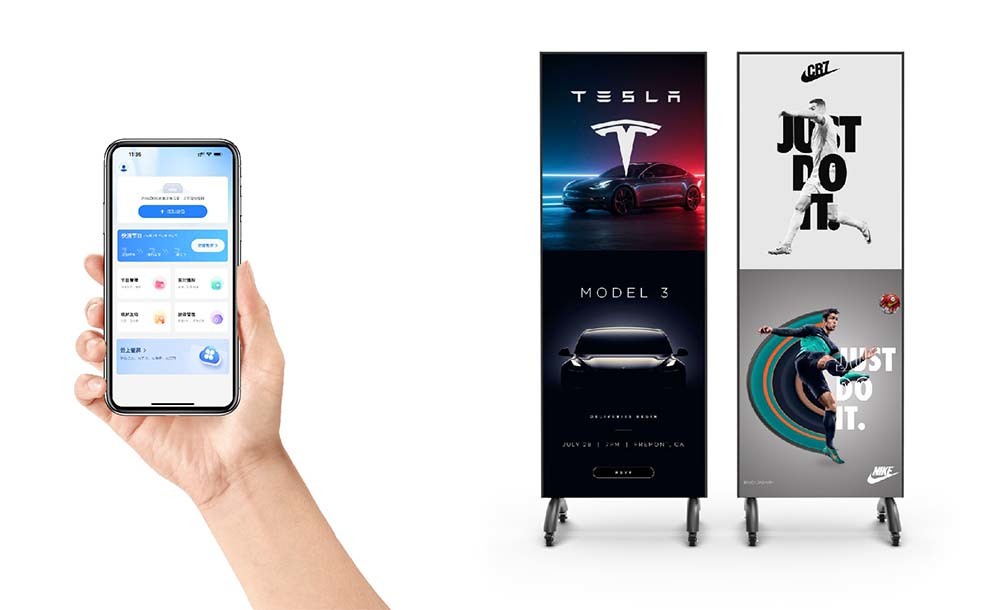

Easy Mobile App Control
Smart simplicity - full control from your smartphone.

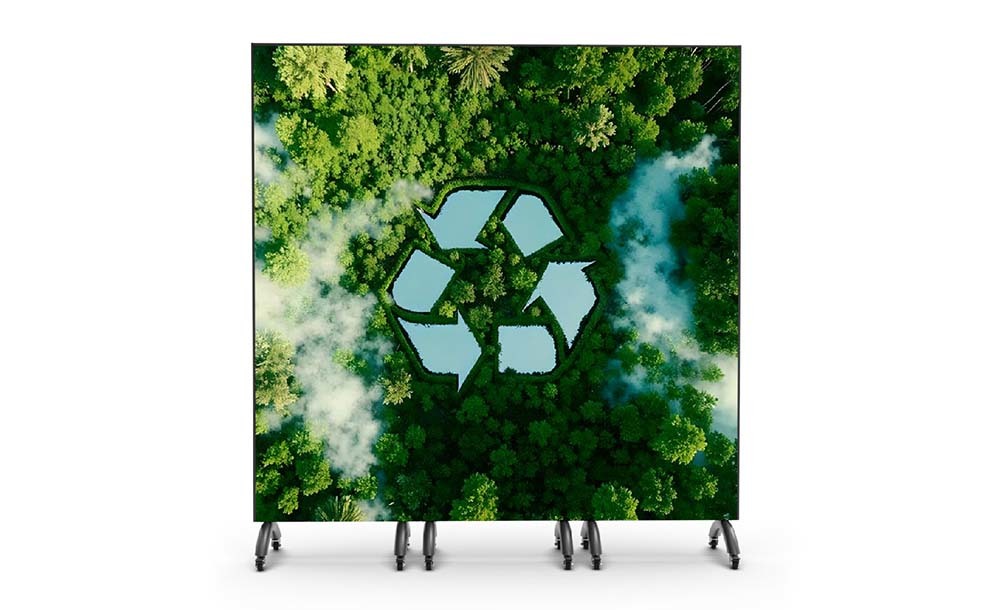

Energy-Saving Efficiency
Featuring an efficient driving solution and energy-saving circuit design, it significantly reduces power consumption while maintaining brightness and image quality. It achieves lower energy usage and extended lifespan, ideal for long-operation commercial environments.

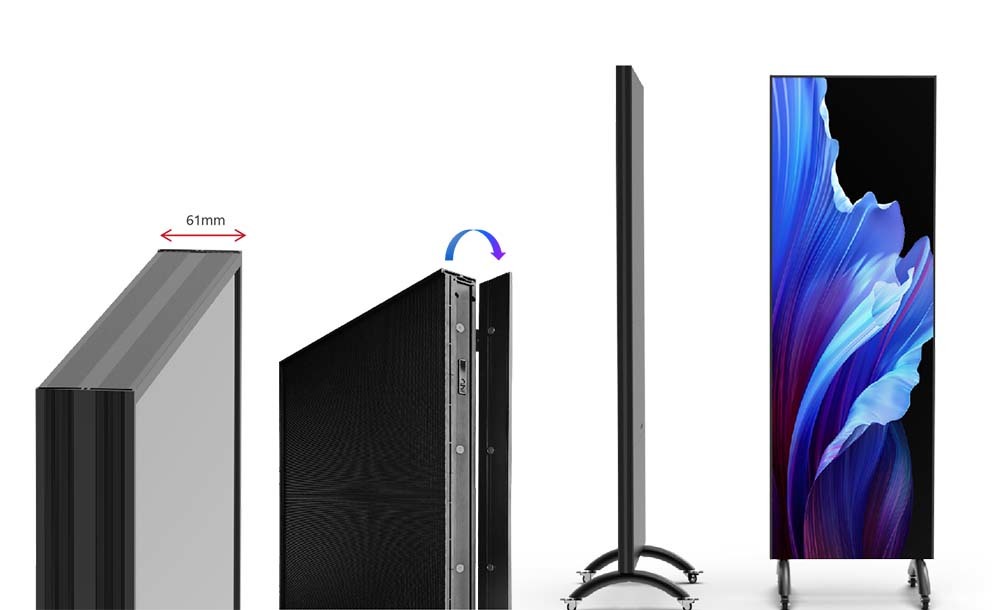

Lightweight and User-friendly
As thin as 61mm Thickness less than 7cm, ready to use after being powered on.
For multiple screens connection, the side covers can be open and spliced for seamless display.
-
Product model
P0.9
P1.8
P2.5
Pixel Pitch (mm)
0.93
1.86
2.5
Display Size (mm)
640*1920
Unit Size (mm)
652*2010*500
Encapsulation
GOB
SMD
Refresh Rate (HZ)
3840
Weight (KG)
45
Brightness (cd/㎡)
600
View Angle
Horizontal 160° / Vertical 160°
Power Consumption (W/㎡）
Max 380 / Average 125
Frame Rate
60
Connection Methods
WIFI or Ethernet Cable
Lifespan
＞100,000 Hours
MTBF
＞10,000 Hours
Operation Temperature
-20~40℃
Operation Humidity
10%~65%RH
Application Environment
Indoor
Note: The relevant parameters in the table are updated in real time, and the data is for reference only
