Shanghai Hongguang Display Technology Co. Ltd.
All-in-one Holographic LED Display
- Description
- Specification parameters
-
APPLICATION SCENARIOS

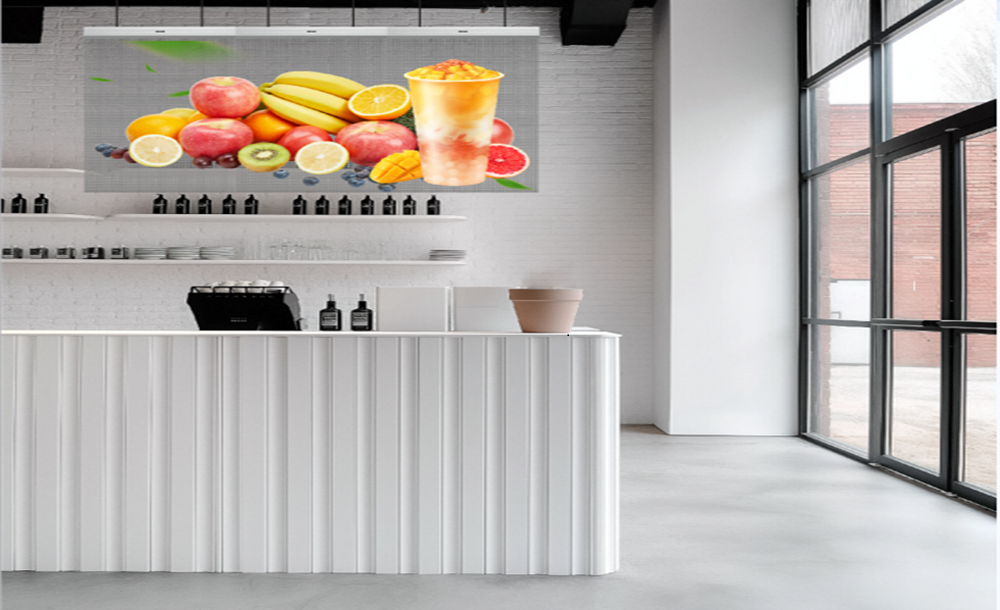

1.Commercial Store Displays
2.Shopping Malls & Atriums
3.Exhibitions & Product Launches
4.Science Museums & Galleries
5.Smart City Terminals
Ultra Slim & Instant Setup
As thin as 1.8mm;
Display thickness under 2mm, ready to use with power-on

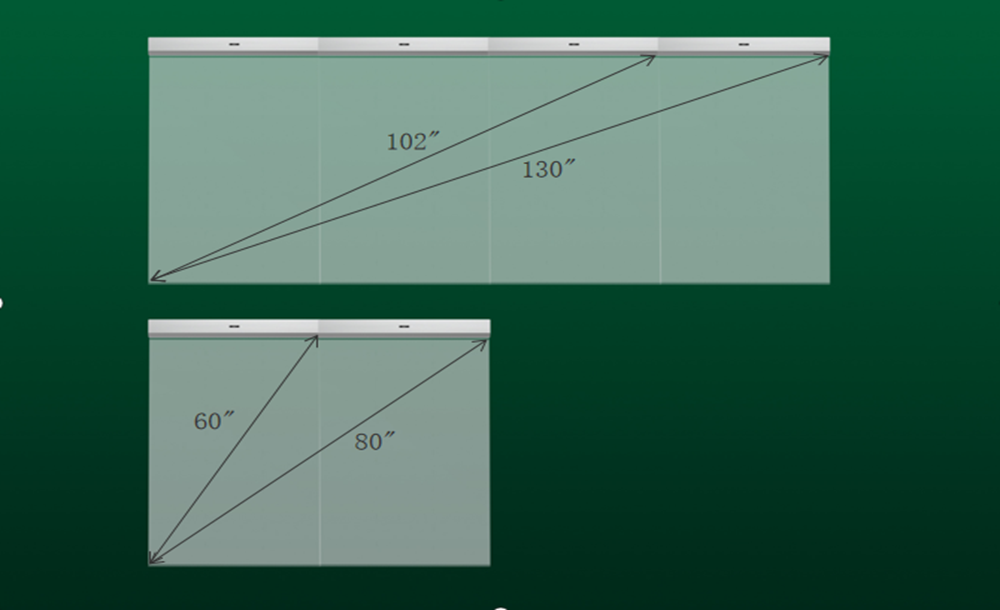

Modular Scalability
Customize your display with flexible sizing: 60", 80", 102", or 130“, to match any viewing needs.
Easy Mobile App Control
Smart simplicity - full control from your smartphone
Transparent Brilliancel
Our all-in-one holographic LED display merges high transparency panels with high brightness, creating an illusion of floating imagery. It preserves spatial openness while delivering vivid and true-to-life visuals, turning every presentation into a captivating spectacle.
High Brightness, High Contrast
Clearly visible even in strong light environments due to excellent brightness and contrast.
-
Product model
QX0713PRO
QX0713S
Screen Size (inch)
60

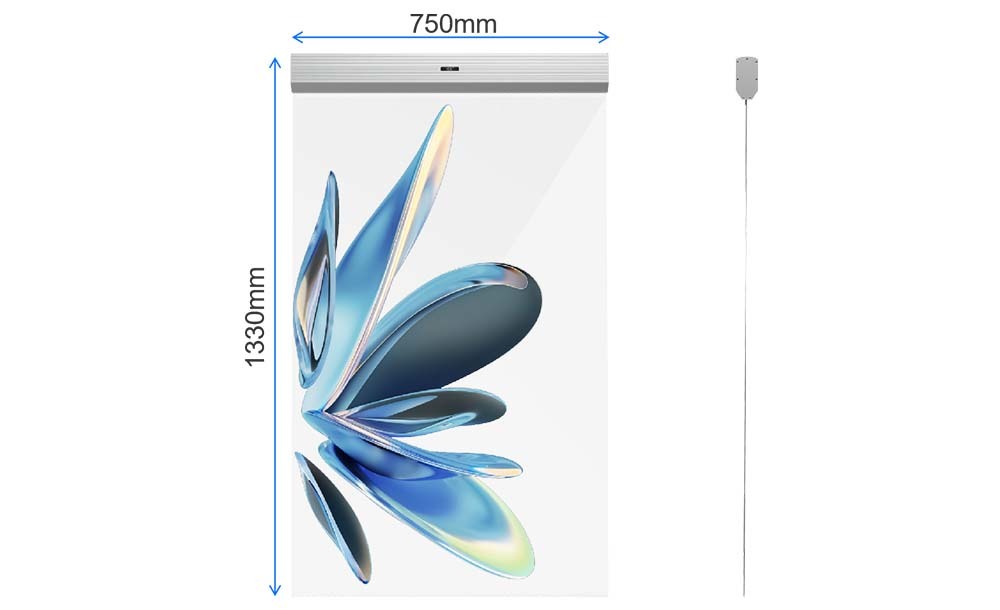

Display Size (mm)
750*1333
750*1333
Display Resolution (dot)
270*448（虚拟）
192*318
Physical Unit Size (mm)
750*1330*78
750*1330*78
LED Type
SMD 1515
Pixel Pitch (mm)
P2.7-2.7
3.91-3.91
Pixel Density (dot/ m²)
129600 (Virtual)
65536
Sensory transparency
88%
90%
White Balance Brightness (cd/m²)
≥2000 (Black)
Maximum Power Consumption (W/m²)
680
Average Power Consumption (W/m²)
260
Color Temperature (K)
3000~10000
Scan Method
1/32 Single-point, single-control, static drive
Frame Frequency (Hz)
60
Packaging
Lamp drive separation package
Typical Lifespan
≥ 100,000 hours
Grayscale
16bit
Power Input
AC100~240V 50/60Hz
Module operation Voltage
DC4.2V ±0.2V
Operating Temperature
-20℃ ~ 50℃
Operating Humidity
20%RH ~ 85%RH, No Condensation
Storage Temperature
-20℃ ~ 60℃
Storage Humidity
10%RH ~ 85%RH, No Condensation
Ingress Protection
IP20
Installation Types
Display Surface Mounting, PCB Side Mounting, Hanging Installation
Installation and Operation Environment
Hanging Installation
Packing:
EPE + carton
Note: The relevant parameters in the table are updated in real time, and the data is for reference only
